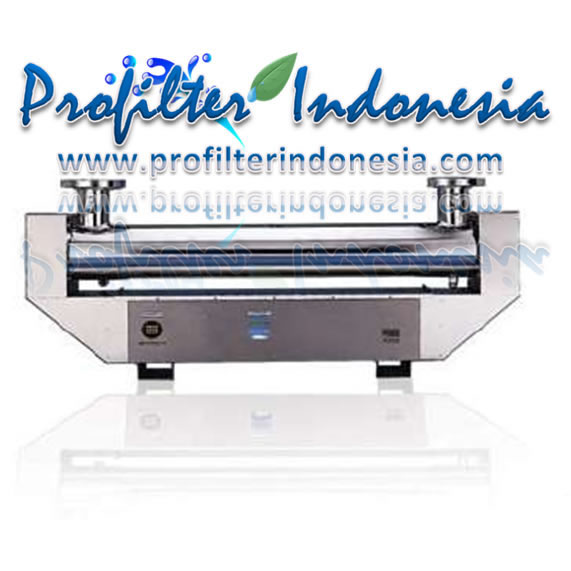

Aquafine CSL 8R 60 UV Water Sterilizer 166 GPM
CSL-8R60
Ultraviolet
Aquafine CSL 8R 60 UV Water Sterilizer 166 GPM, UV Aquafine CSL 8R 60, UV Aquafine, Aquafine Ultraviolet, Aquafine, Ultraviolet 166 GPM, UV 166 GPM, UV CSL 8R 60

Aquafine CSL 8R 60 UV Water Sterilizer 166 GPM



Aquafine CSL 8R 60 UV Water Sterilizer 166 GPM



Aquafine Ultraviolet CSL 8R 60 Specifications:

Maximum Flow Rate

·         Disinfections (@94% UVT) GPM (m3/hr) : 166 (38)

·         Disinfections (@99% UVT) GPM (m3/hr) : 200 (46)

Number of Lamp ( Single – Ended ) : 8

Electrical Requirements

·         Electrical Supply : 120 or 240V/50-60Hz, Single Phase, 2 W + GN D

·         Opperating Power Watts : 590

·         Ballast Type : Electronic

Controller / Detector

·         UV & Temperature Monit. System : Optional

·         Lamp Status Indicator : Standard

·         Lamp Uut Alert (LOA) : Optional

·         Running Time Meter : Standard

·         Hand Off Auto (HOA) : Optional

Control Cabinet

·         Control cabinet system rating : NEMA 1

·         Materials Of Construction : 304 Stainless Steel

Overall Dimensions

·         Inches : 68 x 11 x 28

·         MM : 1727 x 280 x 712

Treatment Chamber

Materials of Construction 316L Stainless Steel

Internal Surface Finish : Ra 32 (Ra 15 optional)

Operating Temperature °F (°C)

·         Water : 50° - 100° (10° - 38°)

·         Ambient Air : 50° - 110° (10° - 43°)

Max . Operating Pressure PSI (Bar ) : 120 (8) (150 (10) Optional )

Inlet /Outlet flange Size :  inches (mm ) 4 (100)
