AquaMatic K524-X230-14000 Composite Valves
K524X230
Aquamatic Valve
AquaMatic K524-X230-14000 Composite Valves, AquaMatic K524Composite Valves, AquaMatic Composite Valves 1.5, AquaMatic Valves, AquaMatic K52 Series Composite Valves, AquaMatic K524

 AquaMatic K524-X230-14000 Composite Valves

Untuk info stock barang dan harga silahkan hubungi 081385066789

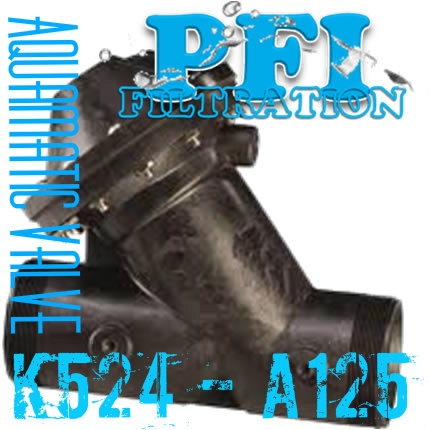

1.5inch "Y" pattern diaphragm valves
Glass-filled thermoplastic body and cap



AquaMatic Valve K524-X230-14000

·         Body Size: 1-1/2"

·         Valve Options: Normally Closed

·         Diaphragm/Seal: Buna−N/EP

·         Drilled and Tapped: None

·         Solenoid Options: None

·         Solenoid Features: None



Features :

·         Large Seat opening and high lift-disc for higher flow rates at a lower pressure loss

·         Separate flow and control chambers permit positive closing without springs; and only nominal cost for spring assist opening for low-pressure and self-draining applications

·         Cost-effective solution both in initial cost, as well as lifetime maintenance expenses

·         Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line

·         Pre-formed, stress relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime

·         All internal parts in contact with media are made of composite materials

·         Can be actuated with either air or water as control fluid

·         Designed for water treatment applications including those requiring acids, caustic and harsh chemicals that would rapidly corrode medtal valves





Kami ada stock di Ruko SB1/23 Vila Nusa Indah 5 – Cibubur – Jakarta :

·          AquaMatic K524-X200-14000 Composite Valves PN:1070168 With Kit PN:1070208

·          AquaMatic K524-X230-14000 Composite Valves PN: 1070172 With Kit PN:1070208

·          AquaMatic K524-X200-64000 Composite Valves PN:1076578 With Kit PN:1071220

·          AquaMatic K524-X200-54000 Composite Valves PN:1070173 With Kit PN:1070209

·          AquaMatic K524-X232-14000 Composite Valves PN:1071215 With Kit PN:1070208



Info harga hubungi Phn 08188 07696 or Email : sales@profilterindonesia.com
