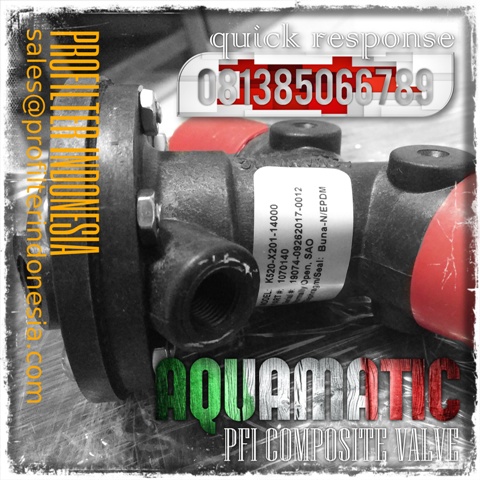

Aquamatic K535-X2B2-14000 Composite Valves 2
Aquamatic Valve
Aquamatic K535-X2B2-14000 Composite Valves 2, Aquamatic K535, Aquamatic Valves 2

Aquamatic K535-X2B2-14000 Composite Valves 2”

Pastikan produk yang anda dapatkan adalah asli dari PFI Watermaker dengan price harga dan kualitas terbaik di Indonesia


2  inch "Y"pattern diaphragm valves
Glass-filled thermoplatic body and cap intended for corrosive applications

AquaMatic Valve K535-X2B2-14000

·         Body Size: 2"

·         Valve Options: XNC, SAC

·         Body material : Noryl

The rugged AquaMatic K53 Series Control Valves are designed to handle deionized water as well as acids, caustic and harsh chemicals or gases that would rapidly corrode metal valves. These valves, constructed of corrosion resistant materials, have all the advantages of the AquaMatic K52 Series Composite Valves. In addition, K53 Series Valves boast a number of additional added features. The valve body and cap are molded from glass-filled thermoplastic.



·         Two dynamic o-rings on the shaft, with a vent in between the o-rings to prevent damage to the diaphragm

·         Female socket weld connectors for easy installation and the ability to remove the valve without disrupting the service piping

·         Cap held by a retaining ring, eliminates screws and nuts

·         No external metal parts to corrode in aggressive atmosphere

·         Valve bodies provided with molded pads can be used to support piping manifold

·         Reinforced diaphragms are pre-formed and stress relieved to maximize responsiveness and product life

·         Ideal for corrosive applications including deionized water, acids, caustis and harsh chemicals that would rapidly corrode metal valves

·         Can be actuated with either air or water as control fluid
