Cartridge Filter 1 Micron 40 inch
CF1M40
PFI Filter Cartridge
Cartridge Filters 1 micron 40 inch, Cartridge Filters 1 micron, Cartridge Filters, 1 micron, 40 inch, Cartridge Filters 40 inch

 Cartridge Filter 1 Micron 40 inch

PT PROFILTER INDONESIA  adalah importir dan penjual Reverse Osmosis Membrane Bag Filter Cartridge Housing UV Aquafine Sterilight Static Mixer di Indonesia dengan harga terbaik untuk keperluan berbagai Industri

We Have Filter Material :

·         String Wound Filter , Cotton Wound & Polypropylene Wound

·         Melt-Blown Filter

·         Pleated Filter

·         Melt-Spun Filter



For Core Material :



String Wound Filter

·         SS316 Core

·         SS304 Core

·         Tin Steel Core

·         Polypropylene



Melt Blown Filter

·         Polypropylene



Micron Size : 1 – 200 micron

Length ; 10” – 60”

Diameter : 2.5” & 4.5”

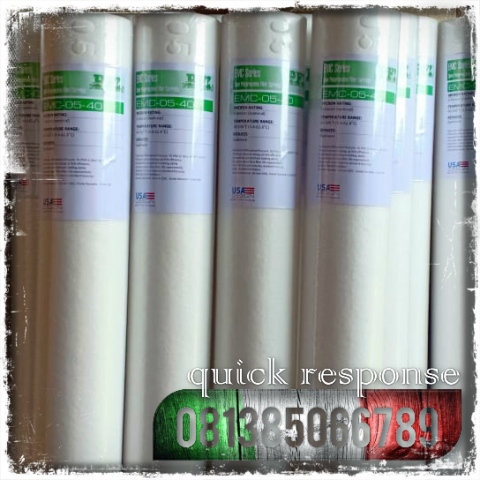

Sediment Filter Cartridge 1 Micron 40 inch



 Spun Bonded Filter Cartridges are made of 100% polypropylene fibers. These fibers have been carefully spun together to form a true gradient density from outer to inner surface. Spun Bonded Filter Cartridges are available with core and without core version. The superior structure remains integral even under severe operating conditions and is no media migration. Polypropylene fibers are blown continuous on central molded core, without the need for binders, resins or lubricants. Operation unfiltered fluid passes through depth filter matrix, enables the progressive retention of finer particles, providing high efficiency, high dirt retention, and filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.



 Features

 100 % Polypropylene for wide chemical compatibility

 Excellent flow with low pressure drop

 Excellent flow with low pressure drop

 High strength & pressure resistance

 Nominal & absolute filtration rating

 Free of surfactants, Binders and Adhesives

 High dirt holding capacity

 One piece construction up to1016 mm. and more



 Technical Specifications

 Sizes : 10” , 20” , 30” 40” Long

 Inner Diameter : 25mm , 28 mm , 48 mm

 Outer Diameter : 64 mm ( 2.5” ) , 114mm ( 4.5” ) , 6” , 8”

 Micron Rating : 0.5 , 1 , 5, 10, 25, 50 , 75 , 100, 125, 150, 175, 200 micron



 Configuration

 Double Open Type ( DOE Type)

 Single Open Ended ( SOE Type ) 226 O Ring , 222 O Ring , Flat and Fin



 Construction

 Spun bonded filter cartridges are made up of 100% Polypropylene



 Applications

 Pharmaceuticals: base product clarifications, membrane pre filter

 Fine chemicals: solvents, process streams, water purification

 Food & beverages: bottled water, flavors, polishing lines

 Petrochemicals: water flood, completion fluids, amines

 Water treatment: membrane protection, resin trap

 Cosmetics: alcohols, essential oils , water lines

 Electronics: electroplating, etching, image development

 Metal finishing: plating solution, paint and resin products, wash

 Magnetic coating: dispersions, coating lines, solvents
