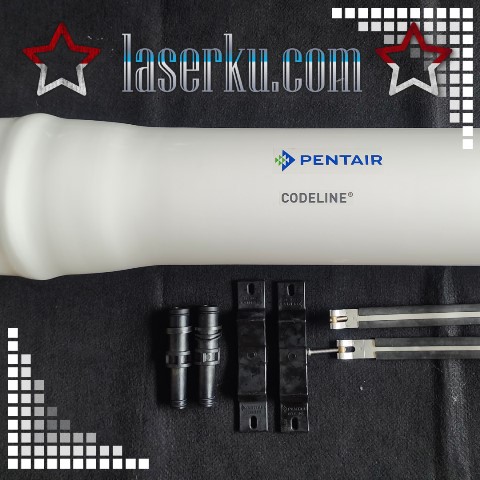

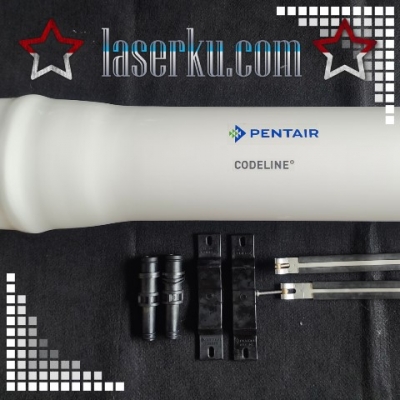

CodeLine 80S Membrane Housing



CodeLine 80S Series Membrane Housing



8" Side Entry: 80S Series Membrane Housings

Models: 80S05, 80S15, 80S30, 80S45, 80S60, 80S100, 80S120

·         Side Entry Design

·         Available in pressure rating of 75psi, 150psi, 300psi, 450psi, 600psi, 1000psi & 1200psi

·         Can accommodate any standard make of 8” Membrane Element

·         Ultrapure/Sanitary Application: For Ultrapure / Sanitary Application, 80S comes with a specially designed sanitary connections.



Key Features

·         Mirror finish I.D for easy & quick loading & unloading of membranes.

·         Multi-Porting option for connecting vessels to each other.

·         High operation temperature upto 190˚F comes as a standard feature.

·         Quick lock head retention system for quick access to membranes.

·         Exteriors coated with high gloss polyurethane paint for UV resistance.

·         ASME compliant & CE marking.

·         Single piece High Grade Glass-filled Engineering Plastic Head cuts down number of spare (available upto 600 psi for non-coded applications)

·         Octagonal shape provides flat surface for superior and reliable sealing of side ports.

·         Threaded side ports for quick and easy onsite maintenance/serviceability.



Specifications 80S Coded

Model

# of Elements

Operating Pressure

Max. Operating Temperature

Qualification Pressure

80S05

1-8

75 psi / 5 bar

120˚F / 49˚C

450 psi / 31 bar

80S15

1-8

150 psi / 10 bar

190˚F / 88˚C

900 psi / 62 bar

80S30

1-8

300 psi / 20 bar

190˚F / 88˚C

1800 psi / 124 bar

80S45

1-8

450 psi / 31 bar

190˚F / 88˚C

2700 psi / 186 bar

80S60

1-8

600 psi / 41 bar

190˚F / 88˚C

3600 psi / 248 bar

80S100

1-8

1000 psi / 68 bar

150˚F / 66˚C

6000 psi / 413 bar

80S120

1-8

1200 psi / 82 bar

150˚F / 66˚C

7200 psi / 496 bar



Specifications 80S Non-Coded

Model

# of Elements

Operating Pressure

Max. Operating Temperature

Qualification Pressure

80S15

1-8

150 psi / 10 bar

120˚F / 49˚C

900 psi / 62 bar

80S30

1-8

300 psi / 20 bar

120˚F / 49˚C

1800 psi / 124 bar

80S45

1-8

450 psi / 31 bar

120˚F / 49˚C

2700 psi / 186 bar

80S60

1-8

600 psi / 41 bar

120˚F / 49˚C

3600 psi / 248 bar
