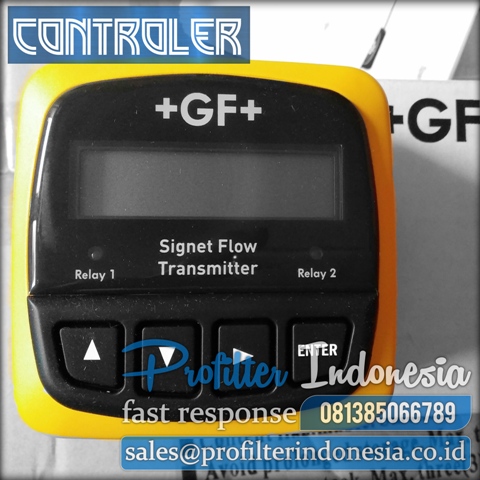

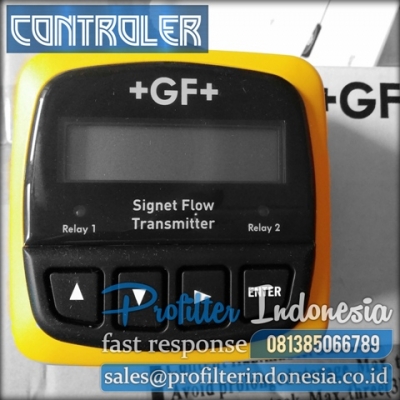

GF Signet 8900 Multi Parameter Controller

$ 0.00

GF-8900
Controller
GF Signet 8900 Multi Parameter Controller, Signet 8900 Multi Parameter Controller, Signet 8900 Controller, Signet 8900 Flow Controller, Signet 8900 pH Controller, Signet 8900 Conductivity Controller

GF Signet 8900 Multi Parameter Controller



 GF Signet 8900 Multi-Parameter Controller



The Signet 8900 Multi-Parameter Controller takes the concept of modularity to the extreme. Each 8900 Controller is field-commissioned with the users-specified combination of inputs, outputs, and relays using simple-to-install modular boards into the base unit. Configure the system by selecting either two, four, or six input channels which accepts any of the Signet sensors listed below, and/or other manufacturer's sensors via a 4  to 20 mA signal converter (Signet Model 8058). To complete your unit, choose a power module with universal AC line voltage or 12 to 24 VDC.



Fields of Application:

·         RO/DI System Control

·         Media Filtration

·         Pure Water Production

·         Demineralizers

·         Chemical Processing

·         Metal & Plastics Finishing

·         Fume scrubbers

·         Proportional Chemical Addition

·         Cooling Tower and Boiler Protection

·         Wastewater Treatment

·         Aquatic Animal Life Support Systems

·         Rinse Tank



Advantages:

·         Measures Flow, pH, ORP, Conductivity, Pressure, Level, Temperature and Dissolved Oxygen

·         Multi-language display

·         1/4 DIN enclosure

·         Up to 4 analog outputs

·         Up to 8 relays

·         12 to 24 VDC or 100 to 240 VAC ±10%, regulated power

·         Digital communication allows for extended cable lengths and easy wiring

·         Accepts 3rd party 4 to 20 mA output devices when used with 8058 signal converter

·         Available with 2 to 6 channels

·         Simultaneous BTU Calculations with Heating & Cooling Totalizers per calculation



Standards:

·         CE

·         UL

·         FCC

·         RoHS compliant

·         China RoHS



Compatible Products:

·         515 Paddlewheel Rotor-X Flow Sensor

·         2536 Paddlewheel Rotor-X Flow Sensor

·         2551 Electromagnetic Flow Sensor

·         525 Metalex Flow Sensor

·         2000 Micro Flow Sensor

·         2100 Turbine Flow Sensor

·         2250 Hydrostatic Level Sensor

·         2350 Temperature Sensor

·         2450 Pressure Sensor

·         2507 Mini Flow Sensor

·         2540 High Performance Flow Sensor

·         2610 Dissolved Oxygen Sensor

·         2750 DryLoc® pH-ORP Sensor Electronics

·         2724-2726 pH/ORP Electrodes

·         2764-2767 Differential DryLoc® pH/ORP Electrodes

·         2774-2777 Threaded DryLoc® pH/ORP Electrodes

·         2850 Conductivity/Resistivity Sensor

·         i-Go 8058 Signal Converter
