GF Signet Paddlewheel 3-2536-P2

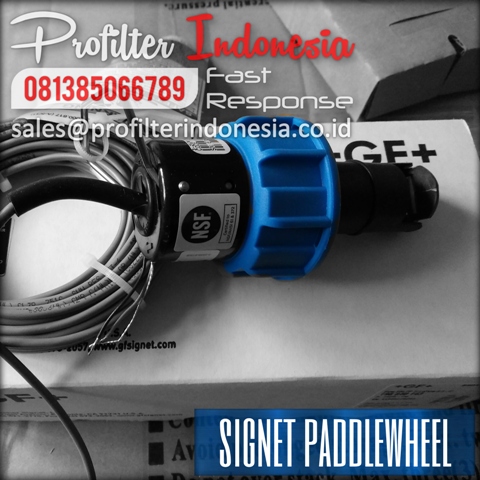

 Type 2536 Rotor-X Standard Mount Paddlewheel


Simple to install with time honored reliable performance, Signet 2536 Rotor-X Paddlewheel Flow Sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The Model 2536 has a process-ready open collector signal with a wide dynamic flow range of 0.1 to 6 m/s (0.3 to 20 ft/s). The sensor measures liquid flow rates in full pipes and can be used in low pressure systems.   The Signet 2536 sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices including PP and PVDF make this model highly versatile and chemically compatible with many liquid process solutions. Sensors can be installed in DN15 to DN900 (½ to 36 in.) pipes using Signet's comprehensive line of custom fittings. These custom fittings, which include tees, saddles, and weldolets, seat the sensor to the proper insertion depth into the process flow. The sensors are also offered in configurations for wet-tap installation requirements.

 GF Signet Paddlewheel 3-2536-P2


·         7.6 m (25 ft) of cable for standard and Wet-Tap sensors

·         Easy to replace rotor

·         Installs into pipe sizes DN15 to DN900 (½ to 36 in.)

·         Operating range 0.1 to 6 m/s (0.3 to 20 ft/s)

·         Wide Turndown Ratio of 66:1

·         High resolution and noise immunity

·         Open-collector output

·         Chemically resistant materials


Fields of Application :

·         Chemical Production

·         Liquid Delivery Systems

·         Pump Protection

·         Filtration systems

·         Pure Water Production

·         Not suitable for gases

·         Scrubber Systems

·         Water Monitoring


Standards :

·         CE

·         China RoHS

·         RoHS Compliant

·         FCC
