Grundfos DME 375-10 Digital Dosing pumps
DME 375-10
Pump and Motor
Grundfos DME 375-10 Digital Dosing pumps, Grundfos DME 375-10 Dosing pumps, Grundfos Dosing pumps, Grundfos DME 375-10

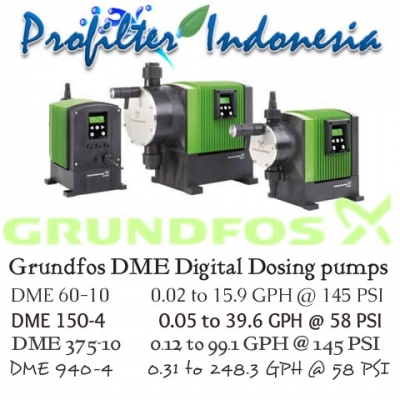

Grundfos DME 375-10 Digital Dosing pumps

Info Harga dan stock barang hubungi kami Phn 081385066789, 0818807696

Grundfos DME Digital Dosing pumps combine perfect precision with user-friendliness.


Performance range:   0.02 to 248 GPH (up to 940 l/hr)
Max pressure:  145 PSI

> 1:800 turndown ratio, +/- 1% repeatable accuracy through entire adjustable range
> Mircroprocessor controlled variable speed motor (1x100-240V, 50/60Hz)
> Back lit display, precise easy setting in GPH (l/hr)
> Simple calibration mode
> Anti-Cavitation (slow mode) for viscous fluids
> Priming button
> Overload protection
> Optional flow verification and leak detection



Feed rate setting range: (+/-1% repeatable accuracy through entire adjustable range)

DME 60-10

0.02 to 15.9 GPH @ 145 PSI

DME 150-4

0.05 to 39.6 GPH @ 58 PSI

DME 375-10

0.12 to 99.1 GPH @ 145 PSI

DME 940-4

0.31 to 248.3 GPH @ 58 PSI


Material options:
Pump head - PVDF, Polypropylene, 316SS
Gaskets - FKM, EPDM, PTFE

Control variants:
DME B - Basic manual control
DME AR - Automatic control + alarm relay
DME AP - AR + Profibus

Processes:

Dosing of biocides and chemicals, belt lubricant for conveyor equipment diverse range of acids, lyes, flocculation and coagulation agents, cationic and anionic polymers, precipitating agents and disinfectants, CIP applications

Applications:

Pulp and paper industry
Textile industry
Food and beverage industry
Industrial process water and waste water treatment
Drinking water treatment
