Grundfos Dosing pumps
Pump and Motor
Grundfos Dosing pumps, Grundfos Dosing pumps

Grundfos Dosing pumps

Info Harga dan stock barang hubungi kami Phn 081385066789, 0818807696

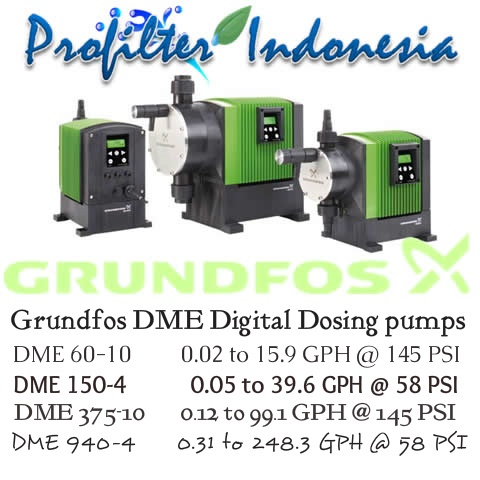

Grundfos DME Digital Dosing pumps combine perfect precision with user-friendliness.

Performance range:   0.02 to 248 GPH (up to 940 l/hr)
Max pressure:  145 PSI

> 1:800 turndown ratio, +/- 1% repeatable accuracy through entire adjustable range
> Mircroprocessor controlled variable speed motor (1x100-240V, 50/60Hz)
> Back lit display, precise easy setting in GPH (l/hr)
> Simple calibration mode
> Anti-Cavitation (slow mode) for viscous fluids
> Priming button
> Overload protection
> Optional flow verification and leak detection


Feed rate setting range: (+/-1% repeatable accuracy through entire adjustable range)

DME 60-10

0.02 to 15.9 GPH @ 145 PSI

DME 150-4

0.05 to 39.6 GPH @ 58 PSI

DME 375-10

0.12 to 99.1 GPH @ 145 PSI

DME 940-4

0.31 to 248.3 GPH @ 58 PSI

Material options:
Pump head - PVDF, Polypropylene, 316SS
Gaskets - FKM, EPDM, PTFE

Control variants:
DME B - Basic manual control
DME AR - Automatic control + alarm relay
DME AP - AR + Profibus


Dosing of biocides and chemicals, belt lubricant for conveyor equipment diverse range of acids, lyes, flocculation and coagulation agents, cationic and anionic polymers, precipitating agents and disinfectants, CIP applications


Pulp and paper industry
Textile industry
Food and beverage industry
Industrial process water and waste water treatment
Drinking water treatment
