High Flow Filter Cartridge Pleated
HFFCP
PFI Filter Cartridge
High Flow Filter Cartridge Pleated, High Flow Filter Cartridge, High Flow Filter, Filter Cartridge Pleated

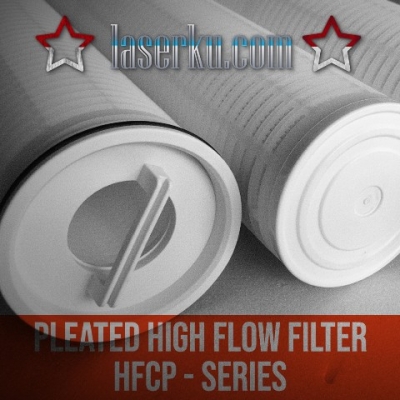

High Flow Filter Cartridge Pleated

Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industry dengan price harga terbaik



Description:

HF Series Pleated Filter cartridges have a 6 inch/152mm large diameter, and is a coreless, single open-ended cartridge with an inside to outside flow pattern. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing d. The long service life and high flow rate result in low investment and less manpower in many applications

Replacement Filtrafine Multipleat High Flow Series Filter Cartridge

Specifications

Dimensions

Outside diameter : 6” (152mm)

Length  :  20” (528mm), 40” (1022mm), 60” (1538mm)



Material of Construction

Filter Media : Pleated Polypropylene, Polypropylene Melt Blown, Pleated Glass Fiber

End Caps : Glass Fiber reinforced Polypropylene

Seal Material : EPDM, NBR

Support/Drainage : Polypropylene



Performance

Micron Rating :

1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm

Max Operating Temperature :

GF: 250°F (121°C), PP: 180°F (82°C), PM: 150°F (65°C)

Max Operating Pressure :

GF: 3.4 Bar@250°F(121°C), PP: 3.4Bar@180°F(82°C), PM:1Bar@150°F(65°C)

Suggested Max Flow :

20”: 660LPM, 40” : 1300LPM, 60” : 1900LPM

Recommended Change Out Differential Pressure: 2Bar@68°F (20°C)
