High Flow Filter Cartridges
HFFC1
PFI Filter Cartridge
High Flow Filter Cartridge, High Flow Filter, High Flow Cartridge, HF Filter Cartridge, Filter Cartridge

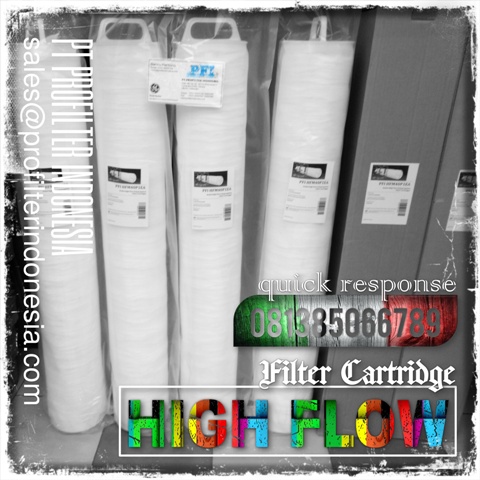

High Flow Filter Cartridge

PFI Watermaker adalah importir distributor agen dan supplier High Flow Filter Cartridge Pleated terlengkap menyediakan berbagai kebutuhan spare part water treatment untuk keperluan industri dengan kualitas dan harga terbaik.



Kami memiliki berbagai macam jenis filter mulai dari RO membrane , filter cartridge, housing bag filter cartridge hingga segala jenis spare part pendukung water treatment lainnya.



Penjelasan PFI High Flow Filter Cartridge

PFI HFCP pleated high flow cartridge filter is constructed with 6 inch (152 mm) large diameter which offers super high flow rate, it can greatly save water treatment plant footprint and reduce filter change-out cost.

Inside-out flow operation keeps all the contaminants inside the filter thus making ment process more convenient.

Available filter media s polypropylene and microfiber glass with pore size from 0.5μm to 100μm. PFI Filter Cartridge HFCP series provides a more cost-effective solution to PP Watermaker high flow filters.



Features of High Flow Filter Cartridges



  • High contaminant holding capacity for long life
  • All materials of construction are FDA listed
  • Fewer cartridges for fewer change-outs, thus less labor and disposal cost
  • Thermally bonded ensure structure integrity and no additives
  • Heavy wall core offers superior strength
  • Integrated handle makes change out fast, easy and safe
  • Inside-to-outside flow traps particulate within filter
  • External netting for additional support
  • Compatible with most brand standard high flow filter housings.



Product Specifications

Media/Support/Cage: Polypropylene

End caps: Polypropylene

O-rings: EPDM, Silicone, Buna-N, Viton

Micron ratings: 1 – 100 μm



Dimensions

Nominal lengths : 20", 40", 60"

Outside diameter : 6.0" (15.2 cm)

Surface area:

24 ft 2. (2.2 m2) per 20" elementt

49 ft 2. (4.6 m2) per 40" element

73 ft 2. (6.8 m2) per 60" element



Operating Parameters

Maximum operating temperature:

77°F @ 50 psid (25°C @ 3.4 bar)

Recommended changeout differential pressure: 35 psid (2.4 bar)

Maximum flow rates :

  • 60" element up to 500 GPM (1892 lpm)
  • 40" element up to 350 GPM (1325 lpm)
  • 20" element up to 175 GPM (662 lpm)
