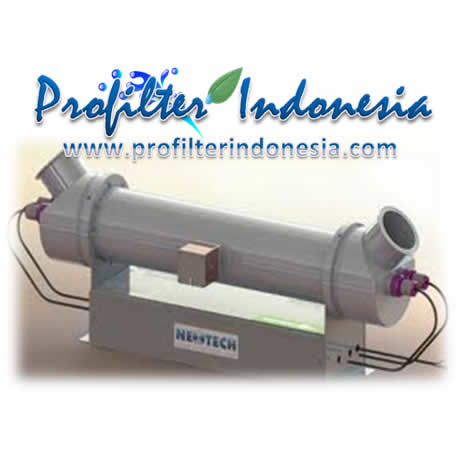

NeoTech D222 UV Disinfection 8 m3 per hour
D222
Ultraviolet
NeoTech D222 UV Disinfection 8 m3 per hour, NeoTech D222 UV Disinfection, UV Disinfection 8 m3 per hour, Ultraviolet

NeoTech D222 UV Disinfection 8 m3 per hour

Pastikan produk yang anda dapatkan adalah asli dari PFI Watermaker dengan price harga dan kualitas terbaik di Indonesia


Ultrapure Water Disinfection & Ozone Destruction

·         Pharmaceutical

·         Microelectronics

·         Medical

·         Remediation

·         Beverage

·         Commercial/Industrial

·         Pool/Spa

·         Waste Water

·         Drinking Water

·         AOP

Product Benefits

·         Single lamp efficiency processes up to 35 gallons per minute

·         75% smaller footprint compared to standard UV systems

·         May be mounted vertically or horizontally

·         Up to four units may be controlled with a single micro-control box

·         Built for 120V or 230V single phase power providing maximum flexibility

·         No flow, no problem – guaranteed 60 minutes

·         Water contact finish – Ra-15

·         Controller- Remote

·         Alarms, Remote Control, 4-20 mA output

·         Real time dosimetry, 100% dosage assurance – with constant flow

·         UV monitor is NIST traceable

·         Sanitization in place – hot water or steam

·         No-tool lamp change

·         NSF Standard 50 certified

·         Warranty one year parts and labor

The NeoTech D222™ is specially designed to disinfect water and is an essential component in advanced oxidation processes.

This high-efficiency UV system utilizes NeoTech Aqua’s patented ReFleX™ chamber technology, reflecting over 99% of the 254nm UV generated. It is the highest efficiency, smallest footprint, and lowest operating cost UV system in the water treatment industry.

With only a single twenty-two inch lamp, the D222™ provides users the most convenient and lowest cost service schedule of any low pressure or medium pressure UV system today.

Disinfection System Specifications

Flow Rate - gpm (m3 /hr.) - 99% UVT @ 40mJ/cm2 ^

35 (8)

Flow Rate - gpm (m3 /hr.) - 99% UVT @ 30mJ/cm2 ^

35 (8)

Flow Rate - gpm (m3 /hr.) - 95% UVT @ 40mJ/cm2 ^

30 (6.8)

Flow Rate - gpm (m3 /hr.) - 95% UVT @ 30mJ/cm2 ^

35 (8)

Number of High Output Amalgam Lamps

1

Lamp Life - Hours*

9000

Operating Power - watts

98

Operating Pressure - psi (bar)

150 (13)

Operating Temperature - ºF (ºC)

36-104 (2-40)

Pressure Drop at rated flow - psi (bar)

0.8 (0.07)

Dry Weight - pounds (kg)

29.8 (13.5)

Dimensions (L x H x D) - inches

24.0 x 6.2 x 8.2

Dimensions (L x H x D) - millimeters

609 x 158 x 208

Sanitary Fittings - Standard+

1.5 in


^ At rated pressure drop.

* Lamp life is based on a maximum of one on-off cycle per day and room temperature water.

+All units come standard with sanitary tri-clamp fittings for improved reliability, sanitation, and ease of installation. Alternative connections are available upon request.





Untuk permintaan penawaran silahkan hubungi



PT PROFILTER INDONESIA

Ruko Blok G/54 – Gudang A/01

Jl.Canadian Broadway

Kawasan Pergudangan Commpark – Kotawisata – Cibubur

Mobile : 081385066789

Email : sales@profilterindonesia.com
