Pentek Stainless Steel Filter Housing
ST-STBC
Housing Cartridge Filter
Pentek Stainless Steel Filter Housing, Pentek Stainless Steel, Stainless Steel Filte, Filter Housing, Pentek Filter Housing

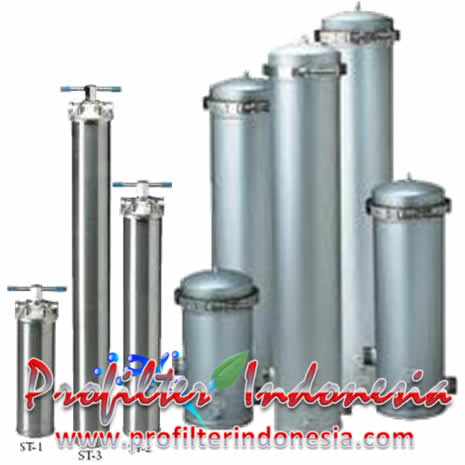

Pentek Stainless Steel Filter Housing

Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part water treatment untuk keperluan industri dengan price harga terbaik



Pentek ST-1, 3/4" Stainless Steel Filter Housing

Pentek ST-1 Stainless Steel Filter Housing Specs:

·         Pentek ST-1 Maximum Temperature: 275°F (135°C)

·         Pentek ST-1 Initial ΔP (psi) @ Flow Rate (gpm): 10 gpm (38 L/min)

·         Pentek ST-1 Maximum Pressure: 250 psi (17.2 bar)

·         Pentek ST-1 Pipe Size: 3/4" NPT

·         Pentek ST-1 Dimensions: 12-7/8" L x 4-1/8" W (327 mm x 105 mm)

Pentek ST-1 Stainless Steel Filter Housing Materials of Construction:

·         Housing: Brushed 304 Stainless Steel

·         Head: Brass/Nickel Plated

·         Sealing Gaskets: Buna-N, Cellulose Fiber

Pentek ST-2, 3/4" Stainless Steel Filter Housing

Pentek ST-2 Stainless Steel Filter Housing Specs:

·         Pentek ST-2 Maximum Temperature: 275°F (135°C)

·         Pentek ST-2 Initial ΔP (psi) @ Flow Rate (gpm): 15 gpm (57 L/min)

·         Pentek ST-2 Maximum Pressure: 250 psi (17.2 bar)

·         Pentek ST-2 Pipe Size: 3/4" NPT

·         Pentek ST-2 Dimensions: 22-3/4" L x 4-1/8" W (578 mm x 105 mm)

Pentek ST-2 Stainless Steel Filter Housing Materials of Construction:

·         Housing: Brushed 304 Stainless Steel

·         Head: Brass/Nickel Plated

·         Sealing Gaskets: Buna-N, Cellulose Fiber

Pentek ST-3, 3/4" Stainless Steel Filter Housing

Pentek ST-3 Stainless Steel Filter Housing Specs:

·         Pentek ST-3 Maximum Temperature: 275°F (135°C)

·         Pentek ST-3 Initial ΔP (psi) @ Flow Rate (gpm): 20 gpm (76 L/min)

·         Pentek ST-3 Maximum Pressure: 250 psi (17.2 bar)

·         Pentek ST-3 Pipe Size: 3/4" NPT

·         Pentek ST-3 Dimensions: 32-3/8" L x 4-1/8" W (822 mm x 105 mm)

Pentek ST-3 Stainless Steel Filter Housing Materials of Construction:

·         Housing: Brushed 304 Stainless Steel

·         Head: Brass/Nickel Plated

·         Sealing Gaskets: Buna-N, Cellulose Fiber

Pentek ST-BC-4, 2" Stainless Steel Filter Housing



Pentek ST-BC-4 Stainless Steel Filter Housing Specs:

·         Pentek ST-BC-4 Maximum Temperature: 275°F (135°C)

·         Pentek ST-BC-4 Initial ΔP (psi) @ Flow Rate (gpm): 28 gpm (106 L/min)

·         (Based on sediment removal with a 25-micron filter cartridge and 1 PSIG initial clean pressure drop)

·         Pentek ST-BC-4 Maximum Pressure: 125 psi (8.62 bar)

·         Pentek ST-BC-4 Pipe Size: 2" (50.8 mm)

·         Pentek ST-BC-4 Dimensions: 19-1/4" L x 10" W (489 mm x 254 mm)

·         Pentek ST-BC-4 Stainless Steel Housing


Pentek ST-BC-4 Stainless Steel Filter Housing Materials of Construction:

·         Housing: Brushed 304 Stainless Steel

·         Finish: Epoxy

·         Sealing Gasket: Buna-N


Pentek ST-BC-8, 2" Stainless Steel Filter Housing

Pentek ST-BC-8 Stainless Steel Filter Housing Specs:

·         Pentek ST-BC-8 Maximum Temperature: 275°F (135°C)

·         Pentek ST-BC-8 Initial ΔP (psi) @ Flow Rate (gpm): 56 gpm (212 L/min)

·         (Based on sediment removal with a 25-micron filter cartridge and 1 PSIG initial clean pressure drop)

·         Pentek ST-BC-8 Maximum Pressure: 125 psi (8.62 bar)

·         Pentek ST-BC-8 Pipe Size: 2" (50.8 mm)

·         Pentek ST-BC-8 Dimensions: 29" L x 10" W (737 mm x 254 mm)

·         Pentek ST-BC-8 Steel Filtration Housing


Pentek ST-BC-8 Stainless Steel Filter Housing Materials of Construction:

·         Housing: Brushed 304 Stainless Steel

·         Finish: Epoxy

·         Sealing Gasket: Buna-N


Pentek ST-BC-12, 2" Stainless Steel Filter Housing

Pentek ST-BC-12 Stainless Steel Filter Housing Specs:

·         Pentek ST-BC-12 Maximum Temperature: 275°F (135°C)

·         Pentek ST-BC-12 Initial ΔP (psi) @ Flow Rate (gpm): 84 gpm (318 L/min)

·         (Based on sediment removal with a 25-micron filter cartridge and 1 PSIG initial clean pressure drop)

·         Pentek ST-BC-12 Maximum Pressure: 125 psi (8.62 bar)

·         Pentek ST-BC-12 Pipe Size: 2" (50.8 mm)

·         Pentek ST-BC-12 Dimensions: 39-3/4" L x 10" W (1010 mm x 254 mm)


Pentek ST-BC-12 Stainless Steel Filter Housing Materials of Construction:

·         Housing: Brushed 304 Stainless Steel

·         Finish: Epoxy

·         Sealing Gasket: Buna-N



Pentek ST-BC-16, 2" Stainless Steel Filter Housing

Pentek ST-BC-16 Water Filter Housing Specs:

·         Pentek ST-BC-16 Maximum Temperature: 275°F (135°C)

·         Pentek ST-BC-16 Initial ΔP (psi) @ Flow Rate (gpm): 110 gpm (416 L/min)

·         (Based on sediment removal with a 25-micron filter cartridge and 1 PSIG initial clean pressure drop)

·         Pentek ST-BC-16 Maximum Pressure: 125 psi (8.62 bar)

·         Pentek ST-BC-16 Pipe Size: 2" (50.8 mm)

·         Pentek ST-BC-16 Dimensions: 49-3/4" x 10" (1264 mm x 254 mm)


Pentek ST-BC-16 Stainless Steel Filter Housing Materials of Construction:

·         Housing: Brushed 304 Stainless Steel

·         Finish: Epoxy

·         Sealing Gasket: Buna-N


Pentek ST-BC-20, 2" Stainless Steel Filter Housing

Pentek ST-BC-20 Water Filter Housing Specs:

·         Pentek ST-BC-20 Maximum Temperature: 275°F (135°C)

·         Pentek ST-BC-20 Initial ΔP (psi) @ Flow Rate (gpm): 125 gpm (473 L/min)

·         (Based on sediment removal with a 25-micron filter cartridge and 1 PSIG initial clean pressure drop)

·         Pentek ST-BC-20 Maximum Pressure: 125 psi (8.62 bar)

·         Pentek ST-BC-20 Pipe Size: 2" (50.8 mm)

·         Pentek ST-BC-20 Dimensions: 49-3/4" L x 10" W (1264 mm x 254 mm)



Pentek ST-BC-20 Stainless Steel Filter Housing Materials of Construction:

·         Housing: Brushed 304 Stainless Steel

·         Finish: Epoxy

·         Sealing Gasket: Buna-N





Untuk permintaan penawaran, silahkan hubungi


PT PROFILTER INDONESIA

Ruko Blok G/54 – Gudang A/01

Jl.Canadian Broadway

Kawasan Pergudangan Commpark – Kotawisata – Cibubur

Mobile : 081385066789

Email : sales@profilterindonesia.com
