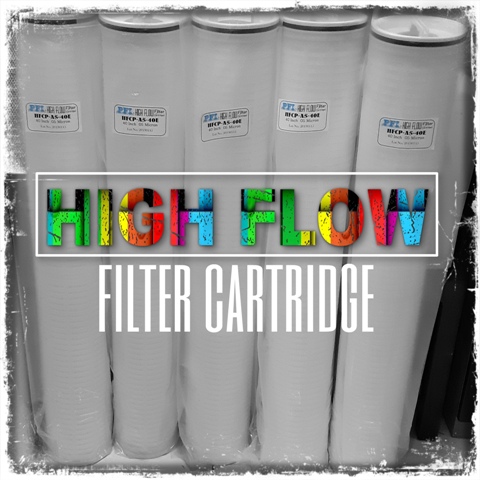

PFI HF Series High Flow Filter Cartridge
PFI-HFp
PFI Filter Cartridge
PFI HF Series High Flow Filter Cartridge, High Flow Filter Cartridge

PFI HF Series High Flow Filter Cartridge

Informasi price harga stock lengkap hubungi kami 081385066789

Description:

HF Series Pleated Filter cartridges have a 6 inch/152mm large diameter, and is a coreless, single open-ended cartridge with an inside to outside flow pattern. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing d. The long service life and high flow rate result in low investment and less manpower in many applications

Replacement Filtrafine Multipleat High Flow Series Filter Cartridges

Applications:

Prefiltration of RO and Pretreatment of sea water desalination

Condensate water filtration

API, solvents, and water filtration in BioPharm market

The filtration of bottled water, high fructose, edible oil, soft drinks, and milk.

Paints and coatings, Petrochemical, Refineries

Microelectronics, film, fiber, and resin



Specifications for HF Series Filter Cartridges

Dimensions

Outside diameter : 6” (152mm)

Length  :  20” (528mm), 40” (1022mm), 60” (1538mm)



Material of Construction

Filter Media : Pleated Polypropylene, Polypropylene Melt Blown, Pleated Glass Fiber

End Caps : Glass Fiber reinforced Polypropylene

Seal Material : EPDM, NBR

Support/Drainage : Polypropylene



Performance

Micron Rating :

1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm

Max Operating Temperature :

GF: 250°F (121°C), PP: 180°F (82°C), PM: 150°F (65°C)

Max Operating Pressure :

GF: 3.4 Bar@250°F(121°C), PP: 3.4Bar@180°F(82°C), PM:1Bar@150°F(65°C)

Suggested Max Flow :

20”: 660LPM, 40” : 1300LPM, 60” : 1900LPM

Recommended Change Out Differential Pressure: 2Bar@68°F (20°C)
