Structural Tank Filter Composite Vessels
strtk
Filter Tank
Structural Tank Filter Composite Vessels

Structural Tank Filter Composite Vessels

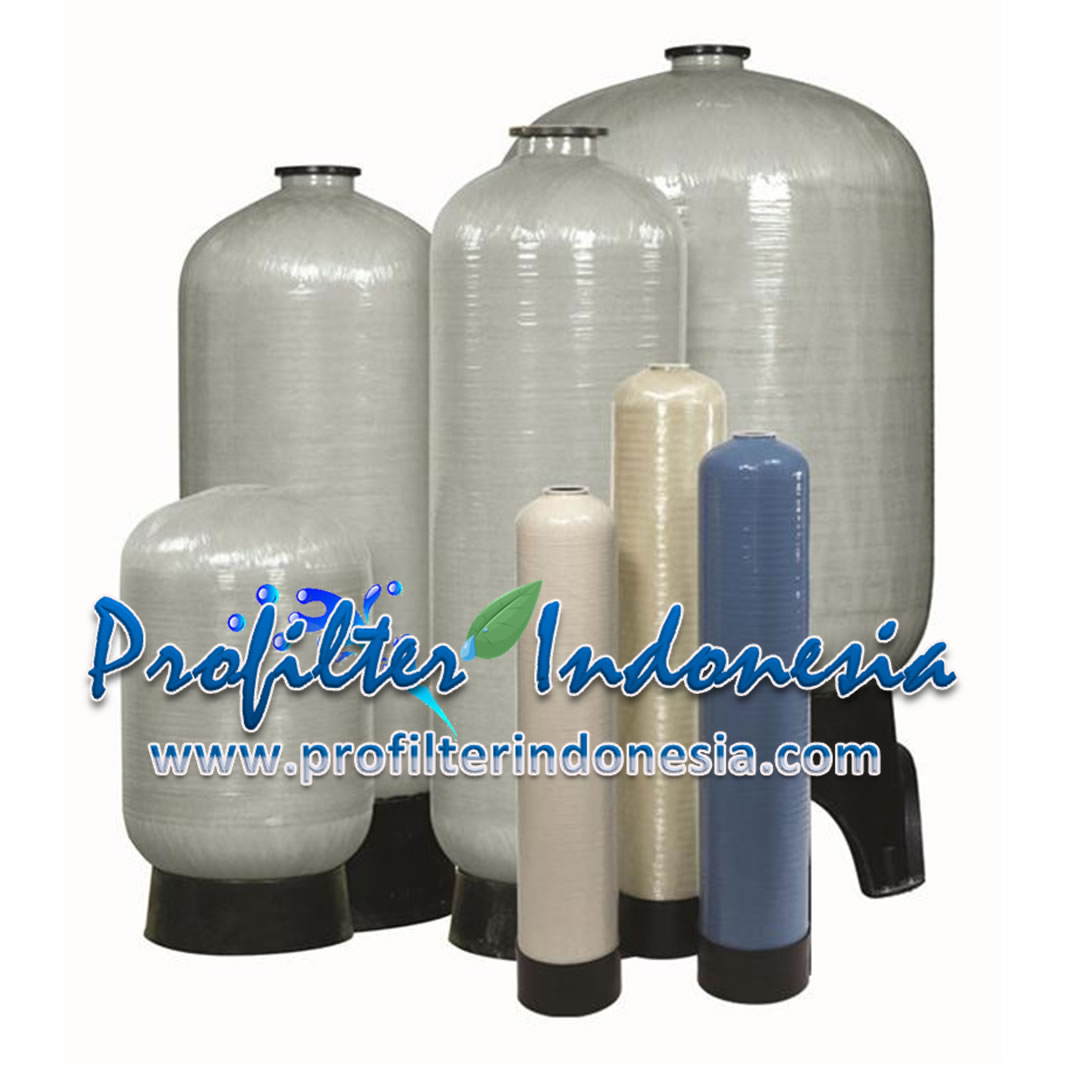

 Structural Composite Vessels



The non-corrosive, cost-effective solution for commercial/industrial water treatment and storage. Structural Composite Pressure Vessels offer fiberglass construction for outstanding performance and durability in harsh chemical enviroments. With capacities up to 1600 gallons and a variety of options, we can tailor a vessel to meet your needs. All Structural Composite Vessels are warranted for 5 years.



Features

·         100% composite fiberglass construction

·         Outstanding performance and durability in harsh chemical environments

·         Absolutely will not - and cannot - rust

·         Requires little or no maintenance

·         Capacities up to 2500 gallons

·         Factory-backed 5-year warranty

·         Materials of construction

·         Polyethylene inner shell



Design Parameters



Pentair

·         Safety factor: 4:1

·         Minimum burst at 600psi

·         Tested to 250,000 cycles without leakage



NSF

·         Safety factor: 4:1

·         Minimum burst at 600 psi

·         Tested to 100,000 cycles without leakage



ASME

·         Top/bottom flange

·         Safety factor: 5:1

·         Minimum burst at 750 psi

·         Tested to 33,000 cycles without leakage

·         Side flange

·         Safety factor: 6:1

·         Minimum burst at 900 psi

·         Tested to 100,000 cycles without leakage



Certified to NSF 61 Standards



Operating Parameters

·         Maximum operating pressure: 150 psi

·         Maximum operating temperature: 150° F (flanged), 120° F (threaded)
