AquaMatic K520-X201-54000 Composite Valves
20x20154
Aquamatic Valve
AquaMatic K520-X201-54000 Composite Valves, AquaMatic K520Composite Valves, AquaMatic Composite Valves , AquaMatic Valves, AquaMatic K52 Series Composite Valves, AquaMatic K520

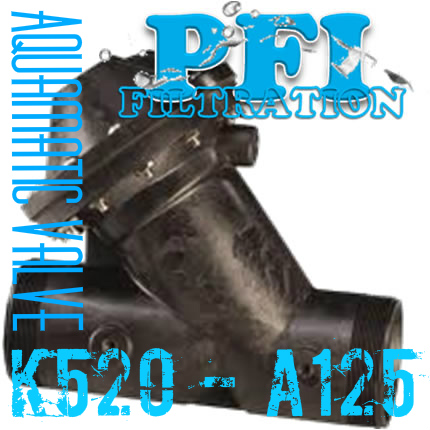

AquaMatic K520-X201-54000 Composite Valves

Pastikan produk yang anda dapatkan adalah asli dari PFI Watermaker dengan price harga dan kualitas terbaik di Indonesia



1/2-inch "Y" pattern diaphragm valves
Glass-filled thermoplastic body and cap


·         Body Size: ½”

·         Valve Options: Normally Open Valve, SAO with limit stop

·         Diaphragm/Seal: Buna−N/ Fluoroelast.

·         Drilled and Tapped: None

·         Solenoid Options: None

·         Solenoid Features: None



Features :

·         Large Seat opening and high lift-disc for higher flow rates at a lower pressure loss

·         Separate flow and control chambers permit positive closing without springs; and only nominal cost for spring assist opening for low-pressure and self-draining applications

·         Cost-effective solution both in initial cost, as well as lifetime maintenance expenses

·         Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line

·         Pre-formed, stress relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime

·         All internal parts in contact with media are made of composite materials

·         Can be actuated with either air or water as control fluid

·         Designed for water treatment applications including those requiring acids, caustic and harsh chemicals that would rapidly corrode medtal valves
