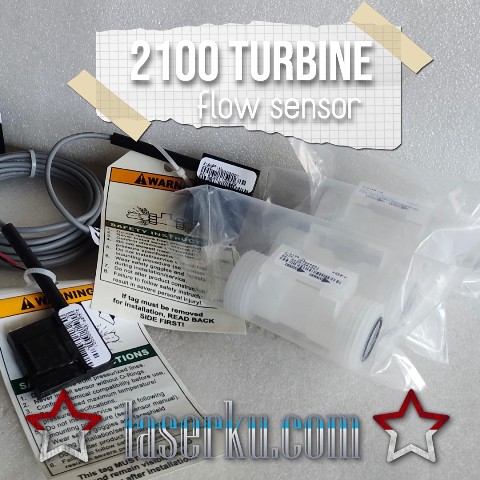

Description Signet 2100 Turbine Flow Sensor
In-line Rotor Flow Sensors offer the ability to measure opaque and transparent liquids with simple installation.
Flow through the body design of the rotor sensor provides easy access for cleaning, inspection and rotor ment without the need for powering down. Flexibility with end connections enable flexible tubing or rigid pipe installations. The injection-molded PVDF body and ceramic bearings provide excellent chemical compatibility and long service in dosing and batching applications.
General Specification Signet 3-2100-1L Turbine Sensor
Operating Range:
L = 0.38 to 3.8 l/m (0.10 to 1 U.S. gpm)
H = 3 to 38 l/m (0.8 to 10 U.S. gpm)
Pipe Size: DN15 (1/2 in.)
Hose Size: DN8 (1/4 in.), DN10 (3/8 in.), DN15 (1/2 in.)
Linearity: ±3% of reading
Repeatability: ±0.5% of reading
Weight: 151 g (0.33 lbs)
Wetted Materials
Sensor body/rotor: PVDF
Shaft/bearings: Ceramic
O-rings: 1 = FKM, 2 = EPR (EPDM)
Electrical
Power: 5 to 24 VDC ± 10%, regulated, 1.5 mA max.
Reverse polarity protected
Output: Open collector, sinking, max 30 mA
Cable Length: 4.6 m (15 ft) can be extended up to 300 m (1000 ft)
Storage Temperature: -15 ºC to 80 ºC
Compatibility
Sensors are compatible with the majority of GF Signet Flow instruments, including the 8900, 9900 and 9950.
Optional extended wiring
Sensors come with standard 7.6 m (25 ft.) cables, extendable up to 300 m (1,000 ft).
Flexibility
Operating range of 0.1 to 12.11 (lpm) (0.026 to 3.2) (gpm), open-collector output and two-conductor twisted pair with shield, 22 AWG cable. Detachable electronics means sensor maintenance is possible without the need to cut power to the unit. NIST traceable test certificate d. Composed of highly chemical-resistant materials.
