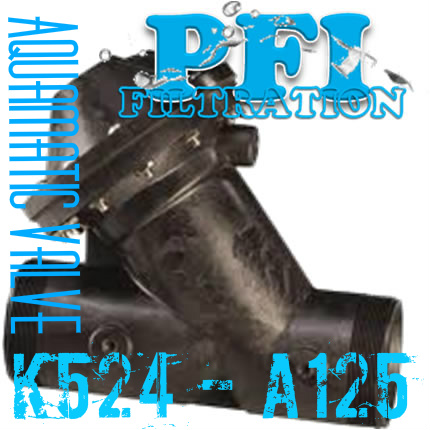

AquaMatic K524-X200-64000 Composite Valves
Pastikan produk yang anda dapatkan adalah asli dari PFI Watermaker dengan price harga dan kualitas terbaik di Indonesia
1.5inch "Y" pattern diaphragm valves
Glass-filled thermoplastic body and cap
· Body Size: 1-1/2"
· Valve Options: Normally Open Valve
· Diaphragm/Seal: Buna−N/Butyl
· Drilled and Tapped: None
· Solenoid Options: None
· Solenoid Features: None
Features :
· Large Seat opening and high lift-disc for higher flow rates at a lower pressure loss
· Separate flow and control chambers permit positive closing without springs; and only nominal cost for spring assist opening for low-pressure and self-draining applications
· Cost-effective solution both in initial cost, as well as lifetime maintenance expenses
· Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line
· Pre-formed, stress relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime
· All internal parts in contact with media are made of composite materials
· Can be actuated with either air or water as control fluid
· Designed for water treatment applications including those requiring acids, caustic and harsh chemicals that would rapidly corrode medtal valves
Untuk permintaan penawaran silahkan hubungi
PT PROFILTER INDONESIA
Ruko Blok G/54 – Gudang A/01
Jl.Canadian Broadway
Kawasan Pergudangan Commpark – Kotawisata – Cibubur
Mobile : 081385066789
Email : sales@profilterindonesia.com
