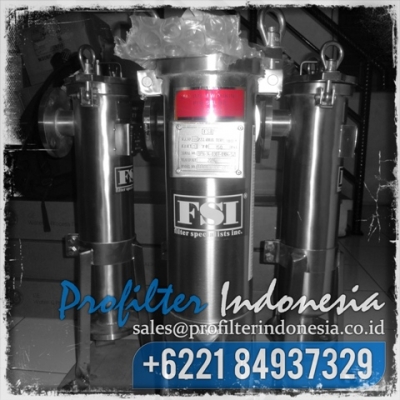

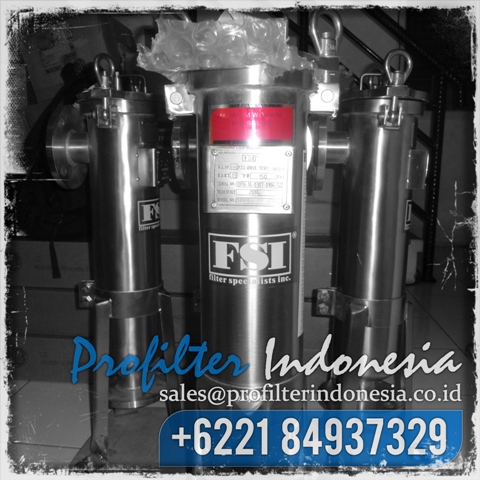

BFNP Series FSI Bag Filter Housing

Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part water treatment untuk keperluan industri dengan price harga terbaik

Standard Features

·         Maximum working pressure BFN 11, 12-150 PSI, BFN 13, 14-150 and 300 PSI

·         Single gasket cover seal

·         Gasket materials available BUNA N, Neoprene EPR, Viton, Viton Teflon Encapsulated (others on request)

·         304 SS perforated basket for up to 75 PSI differential

·         Two inlet/outlet configurations

·         Same side inlet/outlet for easy manifolding

·         Low pressure drops

·         Variety of connections available in either NPT or flange BFN 11, 12-1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" BFN 13, 14-1", 1 1/4", 1 1/2", 2"

·         Permanently piped housing

·         Available with extra length legs, evacuation float

Options

·         Heavy duty baskets available

·         Additional connections including Sanitary Fittings and Socket Weld are available

·         BFNC 11, 12 ASME code versions available

BFN Series Bag Filter Vessels Specifications

Models : BFN11

Bag : Size 1

Flow Rate : 80 GPM

Connections (NPT or Flange) : 1", 1 1/4",  1 1/2", 2", 2 1/2", 3", 4"

Models : BFN12

Bag : Size 2

Flow Rate : 200 GPM

Connections (NPT or Flange) : 1", 1 1/4",  1 1/2", 2", 2 1/2", 3", 4"

Models : BFN13

Bag : Size 3

Flow Rate : 25 GPM

Connections (NPT or Flange) : 1", 1 1/4",  1 1/2", 2"

Models : BFN14

Bag : Size 4

Flow Rate : 40 GPM

Connections (NPT or Flange) : 1", 1 1/4",  1 1/2", 2"
