Sediment Filter Cartridge 1 micron
Pastikan produk yang anda dapatkan adalah asli dari PFI Watermaker dengan price harga dan kualitas terbaik di Indonesia
We Have Filter Material :
· String Wound Filter , Cotton Wound & Polypropylene Wound
· Melt-Blown Filter
· Pleated Filter
· Melt-Spun Filter
For Core Material :
String Wound Filter
· SS316 Core
· SS304 Core
· Tin Steel Core
· Polypropylene
Melt Blown Filter
· Polypropylene Core
Micron Size : 1 – 200 micron
Length ; 10” – 60”
Diameter : 2.5” & 4.5”

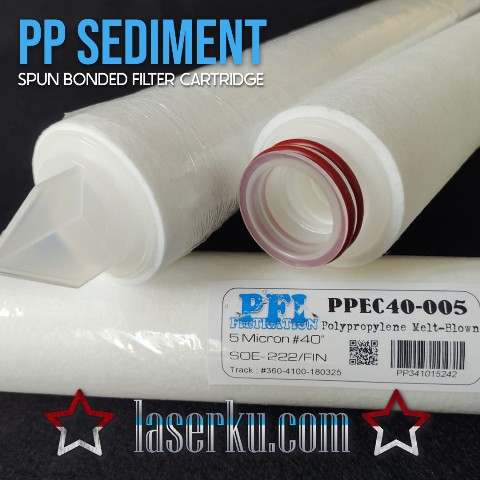

Sediment Filter Cartridge 1 micron
PFI Spun Bonded Filter Cartridges are made of 100% polypropylene fibers. These fibers have been carefully spun together to form a true gradient density from outer to inner surface. Spun Bonded Filter Cartridges are available with core and without core version. The superior structure remains integral even under severe operating conditions and is no media migration. Polypropylene fibers are blown continuous on central molded core, without the need for binders, resins or lubricants. Operation unfiltered fluid passes through depth filter matrix, enables the progressive retention of finer particles, providing high efficiency, high dirt retention, and filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.
Features
100 % Polypropylene for wide chemical compatibility
Excellent flow with low pressure drop
Excellent flow with low pressure drop
High strength & pressure resistance
Nominal & absolute filtration rating
Free of surfactants, Binders and Adhesives
High dirt holding capacity
One piece construction up to1016 mm. and more
Technical Specifications
Sizes : 10”,20”,30”40” Long
Inner Diameter : 25mm , 28 mm ,48 mm
Outer Diameter : 64 mm (2.5”) , 114mm (4.5”) , 6” , 8”
Micron Rating : 0.5 , 1 , 5, 10, 25, 50 , 75 , 100
Configuration
Double Open Type (DOE Type)
Code 7 (226 O Ring Design)
Construction
Spun bonded filter cartridges are made up of 100% Polypropylene
Applications
Pharmaceuticals: base product clarifications, membrane pre filter
Fine chemicals: solvents, process streams, water purification
Food & beverages: bottled water, flavors, polishing lines
Petrochemicals: water flood, completion fluids, amines
Water treatment: membrane protection, resin trap
Cosmetics: alcohols, essential oils , water lines
Electronics: electroplating, etching, image development
Metal finishing: plating solution, paint and resin products, wash
Magnetic coating: dispersions, coating lines, solvents
Untuk permintaan penawaran, silahkan hubungi
PT PROFILTER INDONESIA
Ruko Blok G/54 – Gudang A/01
Jl.Canadian Broadway
Kawasan Pergudangan Commpark – Kotawisata – Cibubur
Mobile : 081385066789
Email : sales@profilterindonesia.com
