Sediment Filter Cartridge 10 micron
SFC-10
Sediment Filter Cartridge
Sediment Filter Cartridge 10 micron, Filter Cartridge 10 micron, Sediment Filter 10 micron, Sediment Filter Cartridge, 10 micron, Filter Cartridge, Filter Cartridge micron

Sediment Filter Cartridge 10 micron

Pastikan produk yang anda dapatkan adalah asli dari PFI Watermaker dengan price harga dan kualitas terbaik di Indonesia


We Have Filter Material :

·         String Wound Filter , Cotton Wound & Polypropylene Wound

·         Melt-Blown Filter

·         Pleated Filter

·         Melt-Spun Filter


For Core Material :

String Wound Filter

·         SS316 Core

·         SS304 Core

·         Tin Steel Core

·         Polypropylene


Melt Blown Filter

·         Polypropylene Core


Micron Size : 1 – 200 micron

Length ; 10” – 60”

Diameter : 2.5” & 4.5”

Sediment Filter Cartridge 10 micron

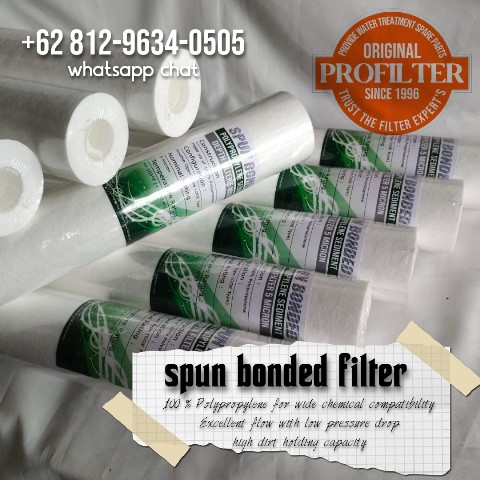

PFI Spun Bonded Filter Cartridges are made of 100% polypropylene fibers. These fibers have been carefully spun together to form a true gradient density from outer to inner surface. Spun Bonded Filter Cartridges are available with core and without core version. The superior structure remains integral even under severe operating conditions and is no media migration. Polypropylene fibers are blown continuous on central molded core, without the need for binders, resins or lubricants. Operation unfiltered fluid passes through depth filter matrix, enables the progressive retention of finer particles, providing high efficiency, high dirt retention, and filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.

Features

100 % Polypropylene for wide chemical compatibility

Excellent flow with low pressure drop

Excellent flow with low pressure drop

High strength & pressure resistance

Nominal & absolute filtration rating

Free of surfactants, Binders and Adhesives

High dirt holding capacity

One piece construction up to1016 mm. and more


Technical Specifications

Sizes : 10”,20”,30”40” Long

Inner Diameter : 25mm , 28 mm ,48 mm

Outer Diameter : 64 mm (2.5”) , 114mm (4.5”) , 6” , 8”

Micron Rating : 0.5 , 1 , 5, 10, 25, 50 , 75 , 100


Configuration

Double Open Type (DOE Type)

Code 7 (226 O Ring Design)


Construction

Spun bonded filter cartridges are made up of 100% Polypropylene


Applications

  • Pharmaceuticals: base product clarifications, membrane pre filter
  • Fine chemicals: solvents, process streams, water purification
  • Food & beverages: bottled water, flavors, polishing lines
  • Petrochemicals: water flood, completion fluids, amines
  • Water treatment: membrane protection, resin trap
  • Cosmetics: alcohols, essential oils , water lines
  • Electronics: electroplating, etching, image development
  • Metal finishing: plating solution, paint and resin products, wash
  • Magnetic coating: dispersions, coating lines, solvents





Untuk permintaan penawaran, silahkan hubungi



PT PROFILTER INDONESIA

Ruko Blok G/54 – Gudang A/01

Jl.Canadian Broadway

Kawasan Pergudangan Commpark – Kotawisata – Cibubur

Mobile : 081385066789

Email : sales@profilterindonesia.com
